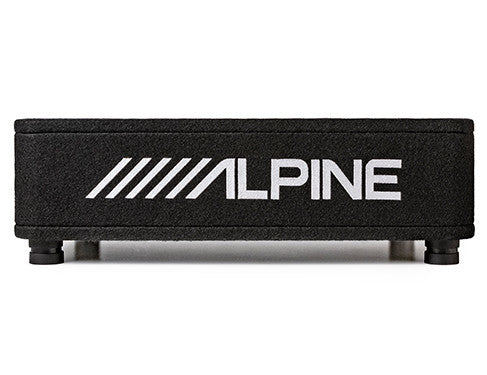

R-Series Loaded 600-Watt Thin 10-Inch 2-Ohm Subwoofer Enclosure
Now you don’t have to choose between bass and space! Alpine’s R-Series Shallow preloaded subwoofer enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.
Don’t let the size fool you – the enclosures feature the same motor movement (20MM of 1-way excursion) as the full-size R2-Series subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series shallow subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.
Integrated cooling fins located in the core of the subwoofer help dissipate the heat generated by the rapid subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime. The unique CoolMount dual-panel mount subwoofer motor enhances cooling.
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control. The preloaded enclosures use the subwoofer frame as bracing fora more ridged design and better bass response.
A lightweight yet rigid aluminum dust cap allows the R-Series shallow subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance. The included adjustable mounting brackets allow for a downfire mount configuration.
With dual voice coils wired in parallel for a 2Ω load, the Alpine R-Series 10" shallow subwoofer enclosure is optimized to perform with Alpine's S-A60M or R-A75M mono amplifiers.
Features
- Optimal sealed cabinet quality
- Aluminum Dust Cap
- Neodymium Magnet
- Alpine Gen2 DD Linear Magnetic Circuit
- CARB compliant ¾” MDF construction
- Premium Alpine embroidered black carpet
- Alpine-branded terminal cup
- Pre-installed steel mesh grille
- Includes a 10” R-Shallow Subwoofer (RS-W10D4)
- Rubber, modular stackable foot design
Specifications
- Dimensions: 21.15” W x 5.25” H x 16” L
- 600W RMS Power Handling
- Frequency response: 29Hz – 200Hz
- Dual 4Ω voice coils wired in parallel for a 2Ω load (compatible with S-A60M or R-A75M)
- Nominal Impedance: 2Ω
- Voice Coil: 4”(101.6mm)
