Lumilum LED strip light clips can be used in order to join 2 ends of RGB (end-to-end) or join 1 end of 24V LED strip and run off the other end (end-to-wire) in order to create space between segments in your LED lighting installation.
These solderless connectors are suitable for RGB 24V LED strip lights.
How to use 18 gauge solid wire with Lumilum LED strip light clips:

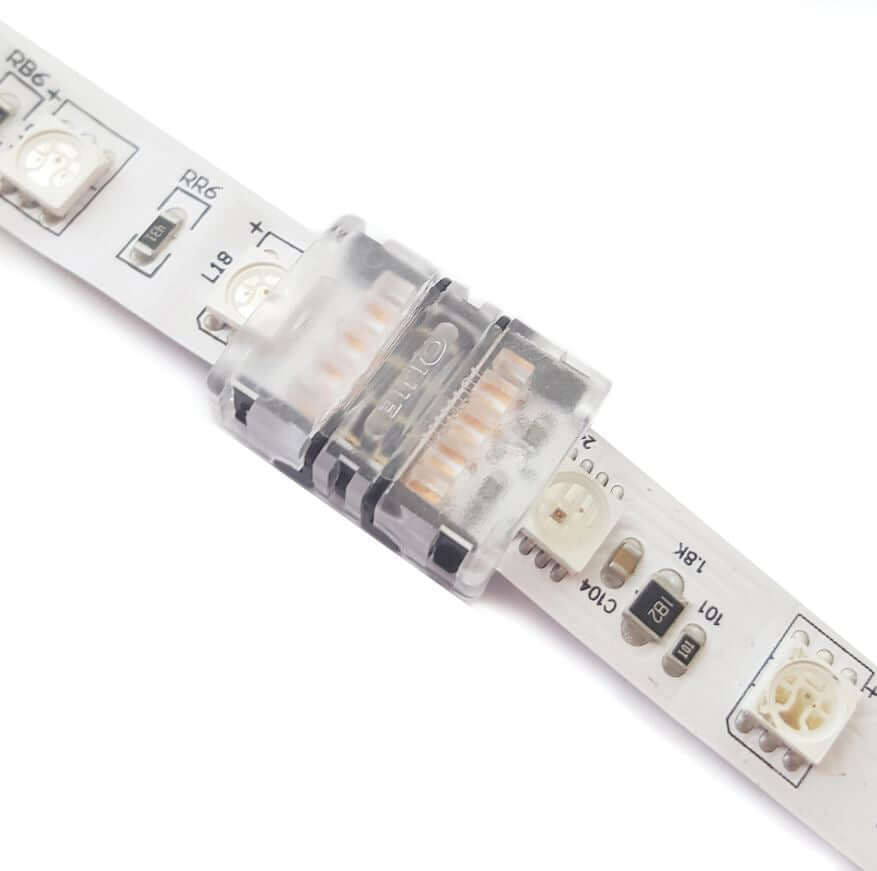

- When using end-to-end LED solderless connectors, slightly separate the silicone cover from the 24V LED lights at the copper connector points where the strip ends or is cut. Insert one of the LED strip light ends into each side of the LED strip clips and then to properly secure the connection, clamp down until you hear a snap.

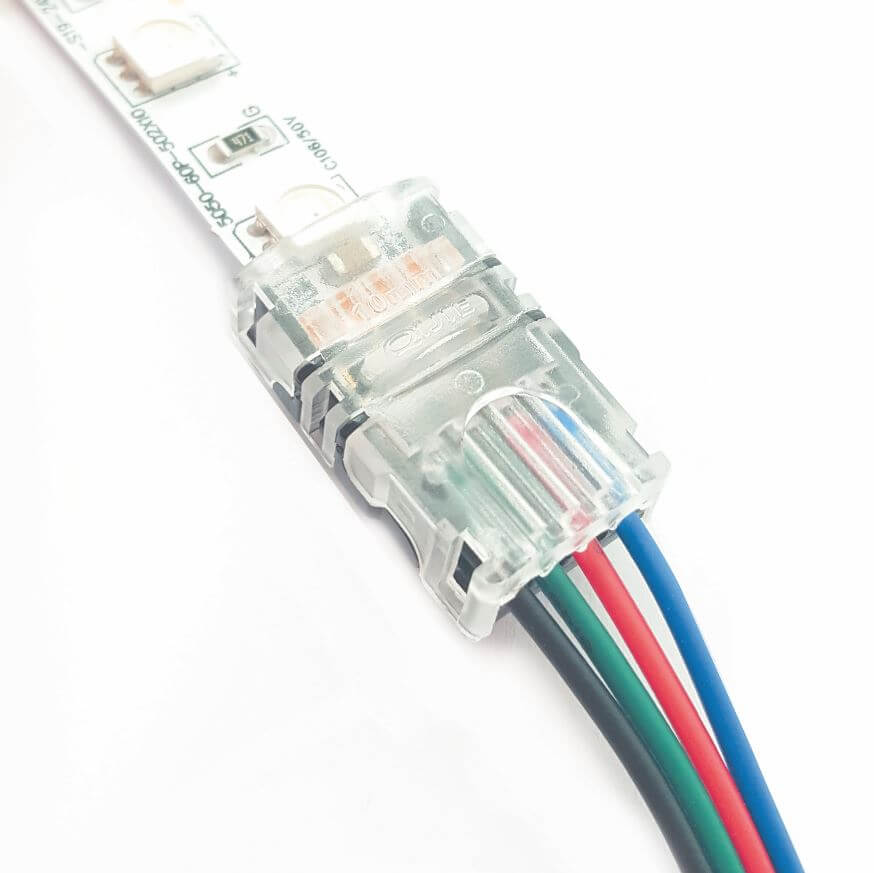

- When using end-to-wire LED solderless connectors, slightly separate the silicone cover from the 24V LED lights at the copper connector points where the strip ends or is cut. Insert the LED strip light end into the flat side of the clip and the wires into the slotted wire side. Once inserted into each side of the LED strip clips, clamp down until you hear a snap and that will secure the connection.
