Smart Tint Power Supply HX150r power dimmer control unit is extremely efficient and designed for long term permanent installation.
This 150watt unit controls up to 150sq feet or 15 square meters of Smart Tint's 6th Generation Smart Film material and is constructed of a high performance flame retardant epoxy resin casting. The operating temperature is very low and suitable for various environments.

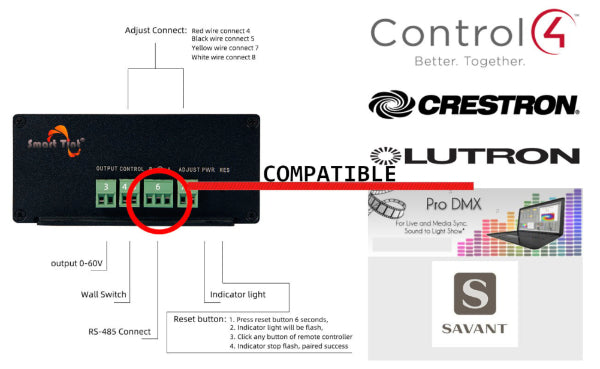

Smart Tint's HX150r Smart Film dimmer control unit has a circuit board that utilizes a self recovery system designed to cut the power by itself when over loaded. This system will auto restart when over load or short is corrected. Compatible with 3rd party dimmer control systems such as Crestron, Lutron, Savant, DMX etc.
Specifications
- Rated Power: 150W
- Rated Ampere: 2A
- Input Voltage: AC 110-120 vac
- Output voltage: AC 48-60vac VAC
- Size: H 4 1/4" x W 6 3/4" x 4 1/4"
