Add-On Amplifier OEM Integration Line Converter with DSP for Select 2021-UP Chrysler, Dodge, Jeep and RAM Vehicles

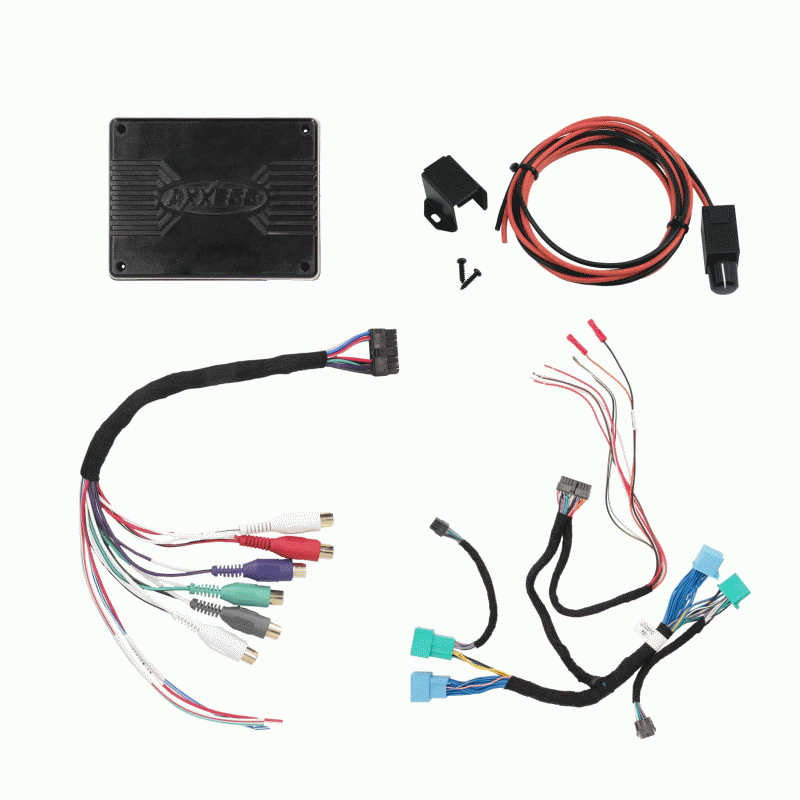

Upgrade your sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in Interface
While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning Control
There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
- Designed for non-amplified models
- Includes a DSP (Digital Signal Processor)
- Selectable 15-band graphic EQ or 5-band parametric EQ
- 4 inputs and 6 individually assignable outputs
- Independent equalization for front, rear, and sub
- Selectable low pass, band pass, and high pass filters
- Selectable crossover slopes; 12db, 24db, 36db, 48db
- Each channel can be delayed independently up to 10ms
- Clipping detection and limiting circuits

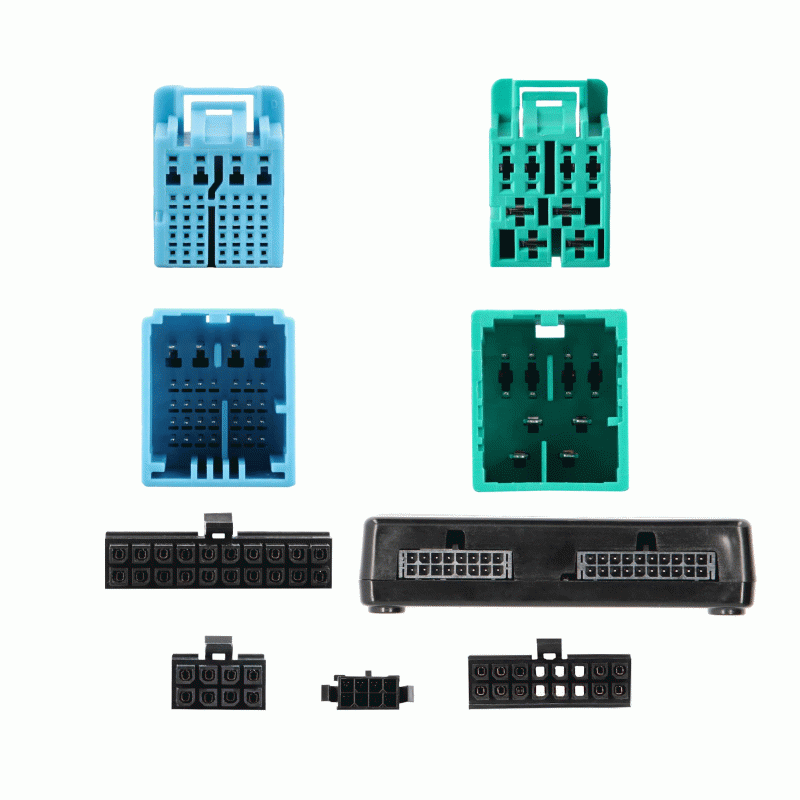

- Easy installation behind the radio with a pre-wired harness
- Internal header port for adding interface modules
- Bass knob included for level control of subwoofer amp
- Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone)
- Compatible with both Android and Apple devices
- Read, write, and store configurations for future recall
- Password protect feature available in the mobile app
Applications
| CHRYSLER |
|
|
| Pacifica | with separate screen | 2021-2022 |
| DODGE |
|
|
| Durango | with separate screen | 2021-2022 |
| Voyager |
| 2022-2022 |
| JEEP |
|
|
| Compass |
| 2022-2022 |
| Gladiator |
| 2024-2024 |
| Wrangler (JL) |
| 2024-2024 |
| RAM |
|
|
| 1500 | RFV radio | 2022-2022 |
| 2500/3500 | RFA/RFL radio | 2022-2022 |
| Promaster |
| 2022-2022 |
