Add-On Amplifier OEM Integration Interface for Select 2013-2023 Chrysler, Dodge, Jeep, Maserati and RAM Vehicles
This latest version of the Pac-Audio AmpPRO simplifies the installation of upgraded amplifiers in select non-amplified and amplified sound systems With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.
Benefits
- Simplifies amplifier installation
- Prevents need for summing and DSP devices
- Provides factory sound system upgrade solution
- Provides flat audio output for a solid audio foundation
Features
- Can be used to upgrade the entire sound system or just part of it thanks to retention of the original amplifier
- Enables the addition of a subwoofer to an amplified sound system
- Variable volume, fade, balance, bass, mid and treble audio settings
- Front, rear, sub preamp outputs (5 volt RMS)
- Customized OE bass, mid and treble center frequency selection
- Retains uConnect, Bluetooth audio, Navigation prompts, and all warning chimes
- Plug-n-Play installation
- Sub level controller
- Optional TOSLINK optical output ( sold separately)
Includes

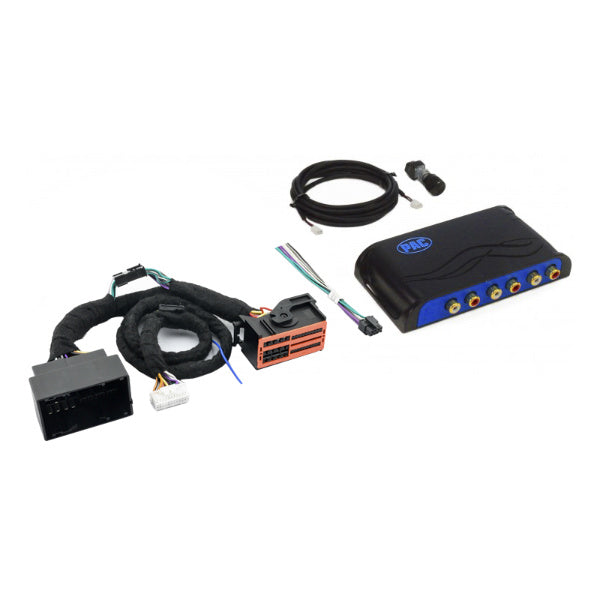

- AmpPRO module
- 52-pin harness (MS-CAN)
- Bass knob with harness
- Manual
Also available for fast, easy install: harness (sold separately)
Select non-amplified vehicles are equipped with an ANC system that requires bypass. Plug-n-Play bypass harness:
Applications
- Compatible with both amplified and non-amplified factory systems.
- Jeep Cherokee, Chrysler 200, and Maserati: These vehicles must be equipped with a factory amplifier as the AP4 cannot reprogram the factory radio to think that an amplifier is present.
- When installing into any of the following vehicles, the is required (sold separately):
| CHRYSLER |
|
|
| 200 | With factory amplifier | 2015-2017 |
| 300 |
| 2015-2023 |
| PACIFICA | 7" screen, 8" screen | 2017-2019 |
| DODGE |
|
|
| CHALLENGER | 7" screen, 8" screen | 2015-2023 |
| CHARGER | 7" screen, 8" screen | 2015-2023 |
| DURANGO | 7" screen, 8" screen | 2014-2020 |
| RAM TRUCK | 7" screen, 8" screen | 2013-2018 |
| RAM TRUCK | All other sizes, Classic model | 2019-2021 |
| JEEP |
|
|
| CHEROKEE | With factory amplifier | 2015-2021 |
| GLADIATOR |
| 2020-2023 |
| GRAND CHEROKEE | 7" screen, 8" screen | 2014-2020 |
| GRAND CHEROKEE | 7" screen, 8" screen, WK | 2021-2022 |
| WRANGLER | JL | 2018 |
| WRANGLER |
| 2019-2023 |
| WRANGLER UNLIMITED | JL | 2018 |
| WRANGLER UNLIMITED |
| 2019-2023 |
| MASERATI |
|
|
| LEVANTE | With factory amplifier | 2018 |
| QUATTROPORTE | With factory amplifier | 2017 |
| RAM |
|
|
| Truck | 7" screen, 8" screen | 2013-2018 |
| Truck | All other sizes, Classic model, New model | 2019-2021 |
