Add-On Amplifier OEM Integration Line Converter with DSP for Select 2006-2020 Buick, Cadillac, Chevrolet, GMC, Hummer and Saturn Vehicles
Upgrade the sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in Interface
While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning Control
There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
- Designed for non-amplified models

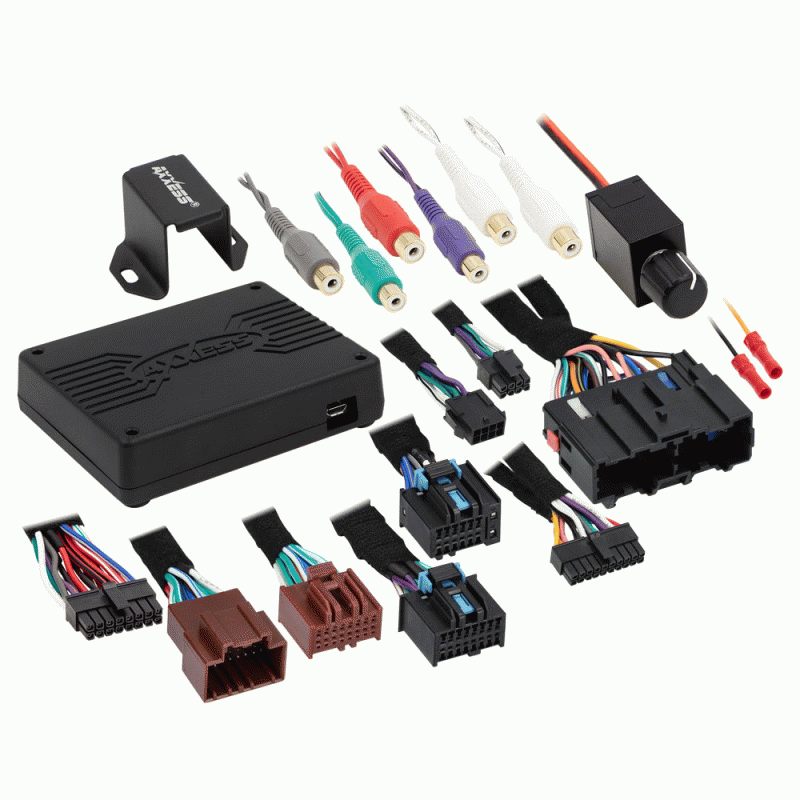

- Package includes the AXDSP-L and vehicle-specific T-harness
- Selectable 15-band graphic EQ or 5-band Parametric EQ
- Selectable high pass, low pass, or bandpass filters on each channel
- 4 inputs and 6 individually assignable outputs
- Independent equalization for front, rear and sub
- Selectable crossover slope (12, 24, 36, or 48db per octave)
- Each channel can be delayed independently for up to 10ms
- Easy behind the radio installation with pre-wired harness
- Can be used with OE and aftermarket radios
- Clipping detection and limiting circuits
- Internal header port for adding interface modules
- Bass knob included for level control of subwoofer amp
- Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone) compatible with both Android and Apple devices
- Read, write, and store configurations for future recall
- Password-protect feature is available in the mobile app
Applications
| BUICK |
|
|
| Enclave |
| 2008-2017 |
| Lucerne |
| 2006-2011 |
| CADILLAC |
|
|
| DTS |
| 2006-2011 |
| Escalade |
| 2007-2011 |
| SRX |
| 2007-2009 |
| CHEVROLET |
|
|
| Avalanche |
| 2007-2011 |
| Avalanche | Non-NAV | 2012-2013 |
| Captiva Sport |
| 2012-2015 |
| Equinox |
| 2007-2009 |
| Express | (-UYS) | 2008-2015 |
| Express |
| 2016-2020 |
| Impala |
| 2006-2013 |
| Impala Limited |
| 2014-2016 |
| Monte Carlo |
| 2006-2007 |
| Silverado |
| 2007-2011 |
| Silverado | Non-Nav | 2012-2013 |
| Silverado 2500 / 3500 | Non-NAV | 2014-2014 |
| Suburban |
| 2007-2011 |
| Suburban | Non-NAV | 2012-2014 |
| Tahoe |
| 2007-2011 |
| Tahoe | Non-NAV | 2012-2014 |
| Traverse |
| 2009-2016 |
| GMC |
|
|
| Acadia |
| 2007-2016 |
| Acadia Limited |
| 2017-2017 |
| Savana | (-UYS) | 2008-2015 |
| Savana |
| 2016-2020 |
| Sierra |
| 2007-2011 |
| Sierra | Non-Nav | 2012-2013 |
| Sierra 2500 / 3500 | Non-Nav | 2014-2014 |
| Yukon / XL |
| 2007-2011 |
| Yukon / XL | Non-NAV | 2012-2014 |
| HUMMER |
|
|
| H2 |
| 2008-2009 |
| SATURN |
|
|
| Outlook |
| 2007-2010 |
| Vue |
| 2008-2010 |
