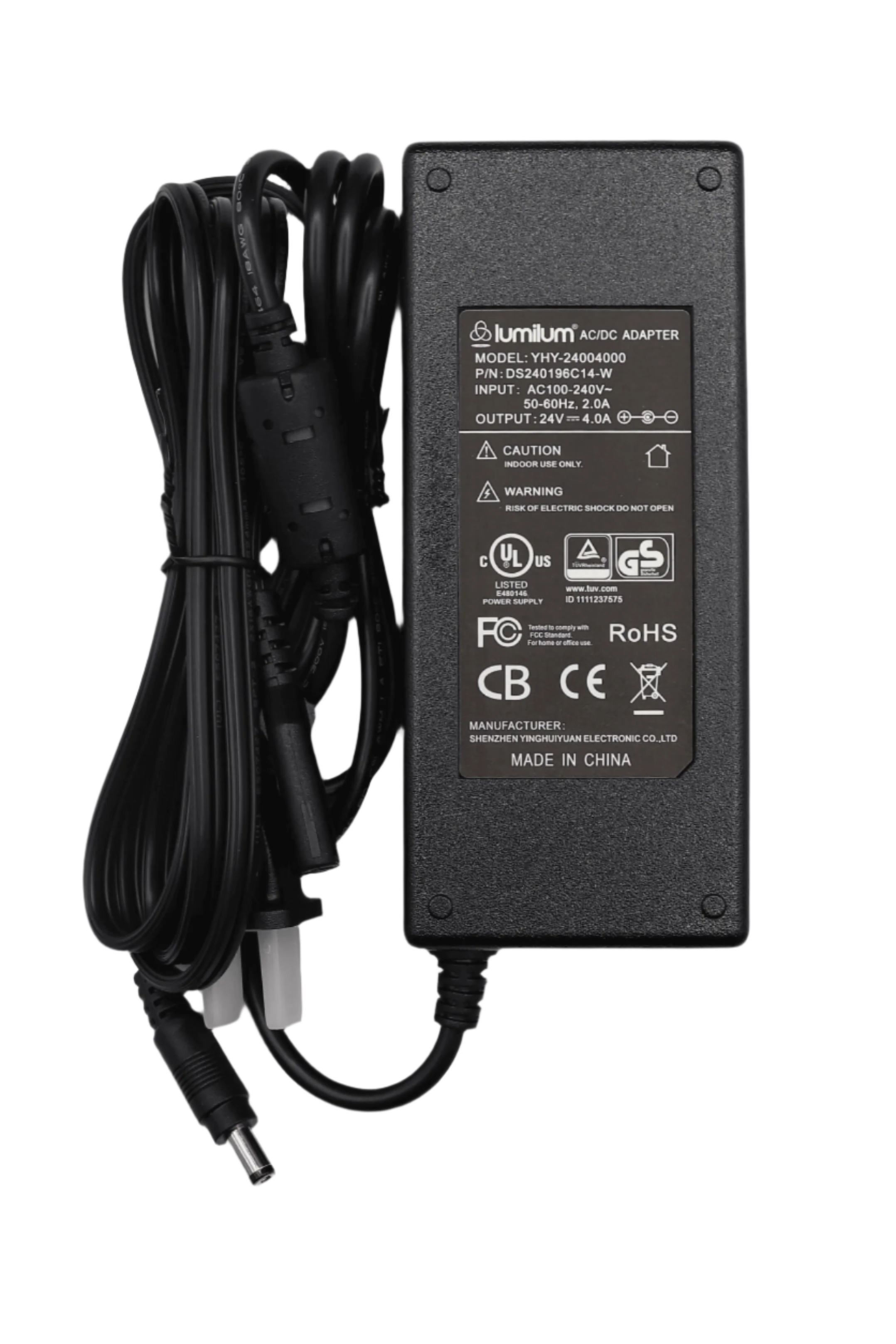

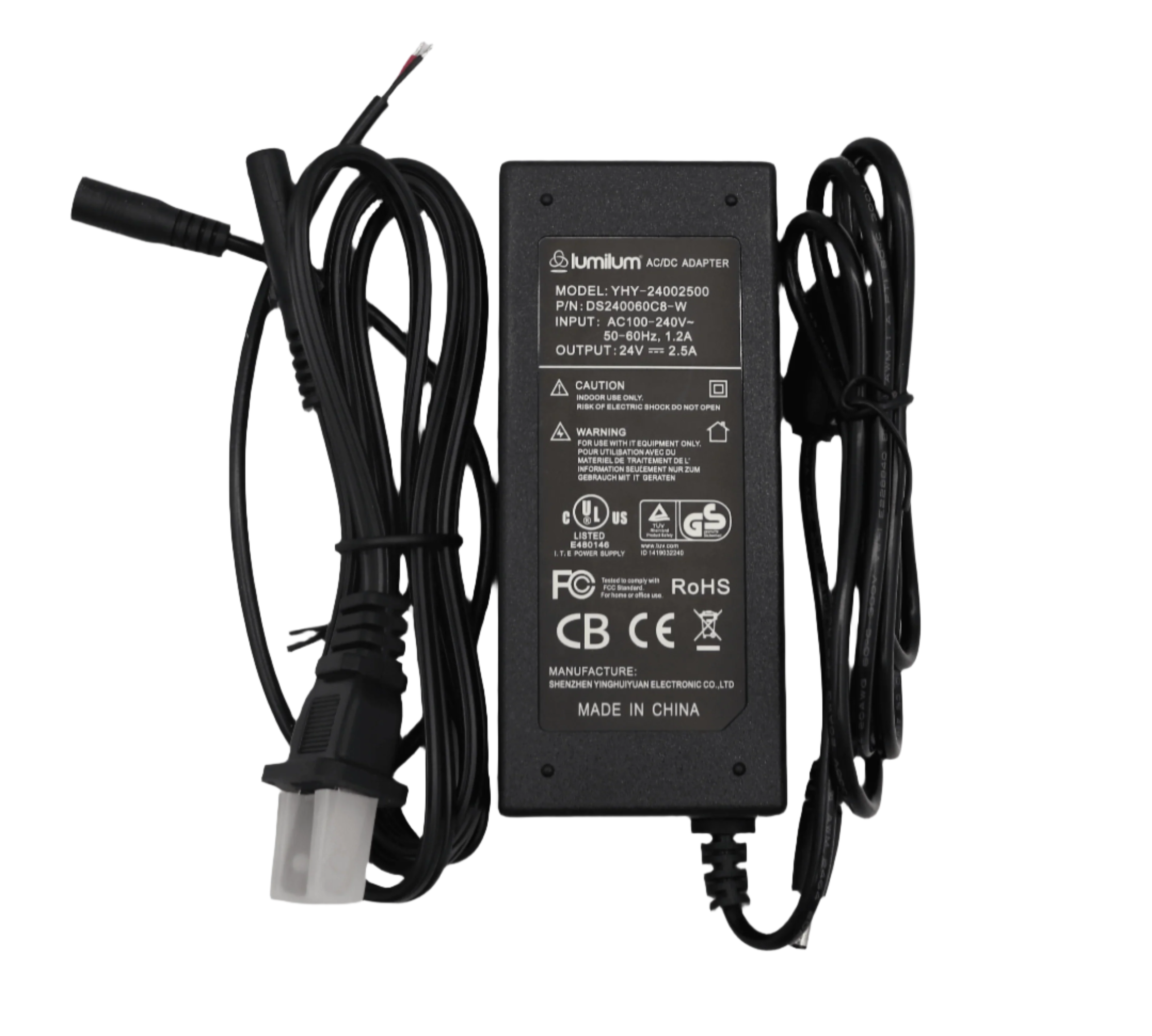

This low voltage LED power supply provides plug-in ready power for your 24V LED strip light project. This 24V driver is designed for use with Lumilum LED Strip Lights from our , , and also makes a great accessory for use with our .
Driver Selection
Step 1: Determine Total Wattage
Calculate the total wattage of the LED strip lights you plan to use. This is done by multiplying the wattage per foot (or meter) of the strip by the total length you'll need.
For example, if your strip uses 5 watts per foot and you need 20 feet, the calculation is:
Total Wattage = 5 watts per foot × 20 feet = 100 watts
Step 2: Add a Safety Margin
To ensure reliability and prevent overload, it's wise to add a safety margin of 20% to your total wattage. This means you will need a transformer that can handle:
Required Transformer Capacity = Total Wattage × 1.2, so 100 watts × 1.2 = 120 watts
Therefore, in this example, you should select a transformer with at least 120 watts capacity.
*Example: a 16.4ft strip is 50 watts x 1.2 = 60 watt driver is needed
Features
- Simple under cabinet accessory - plug-in power adapter with no need for tedious wire connecting
- Great for short-length indoor low-voltage LED tape light projects
Applications
Cove Lighting | Under Cabinet Lighting | Stage Lighting | Stairs | Restaurants | Back-lit Signs | LED Kitchen Lighting | Bars & Liquor Displays | Window Trims | Furniture Illumination | Home Accent Lighting | Architectural Lighting | Hotels | Bedroom LED Lighting | Event Lighting | Hotels | Professional LED Lighting Design Projects | Residential Lighting
