24V LED Magnetic Driver 40W 60W 96W 150W 200W 300W - Waterproof Power Supply for LED Strip Lights, Signage & Cabinet Lighting

Description

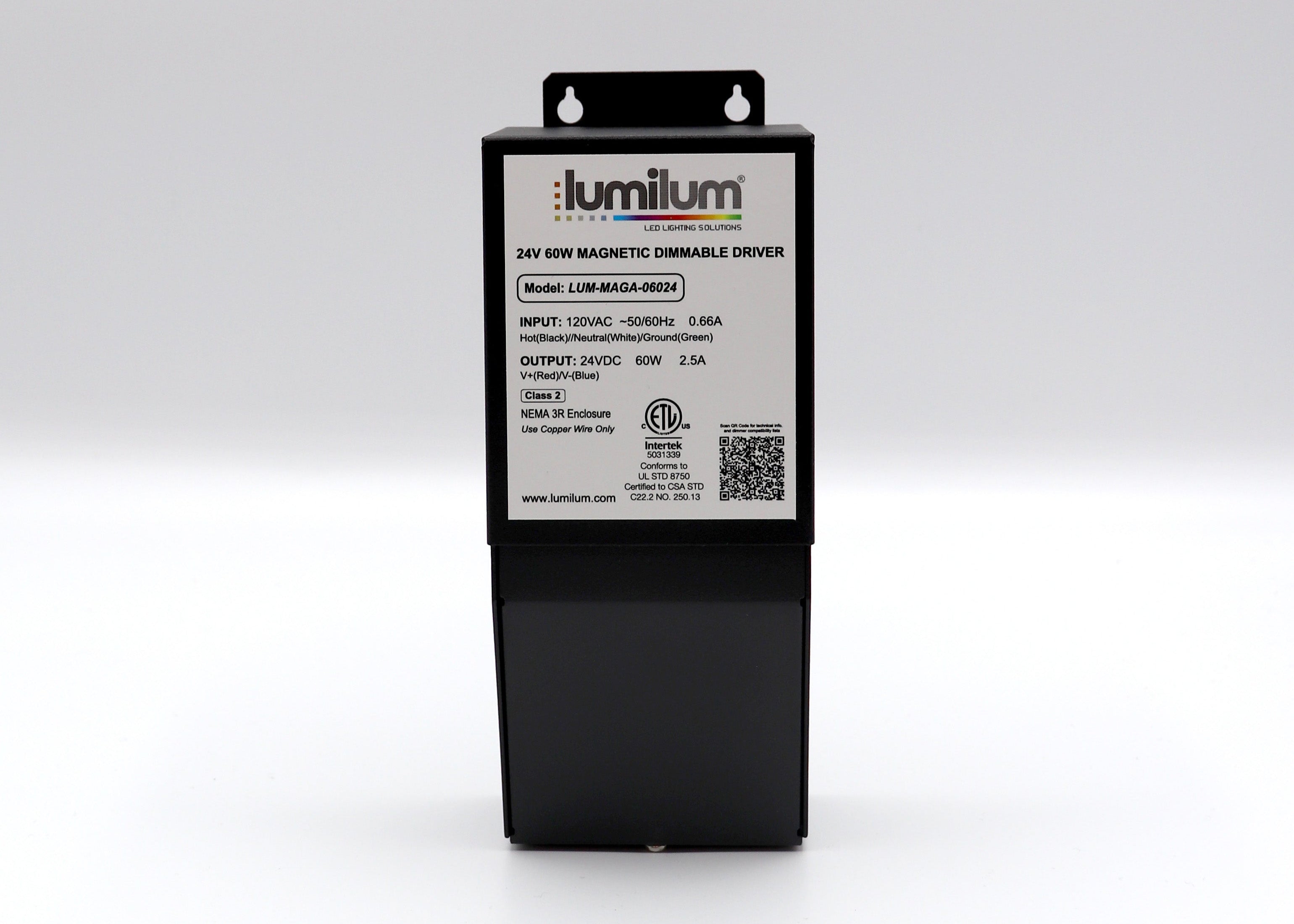

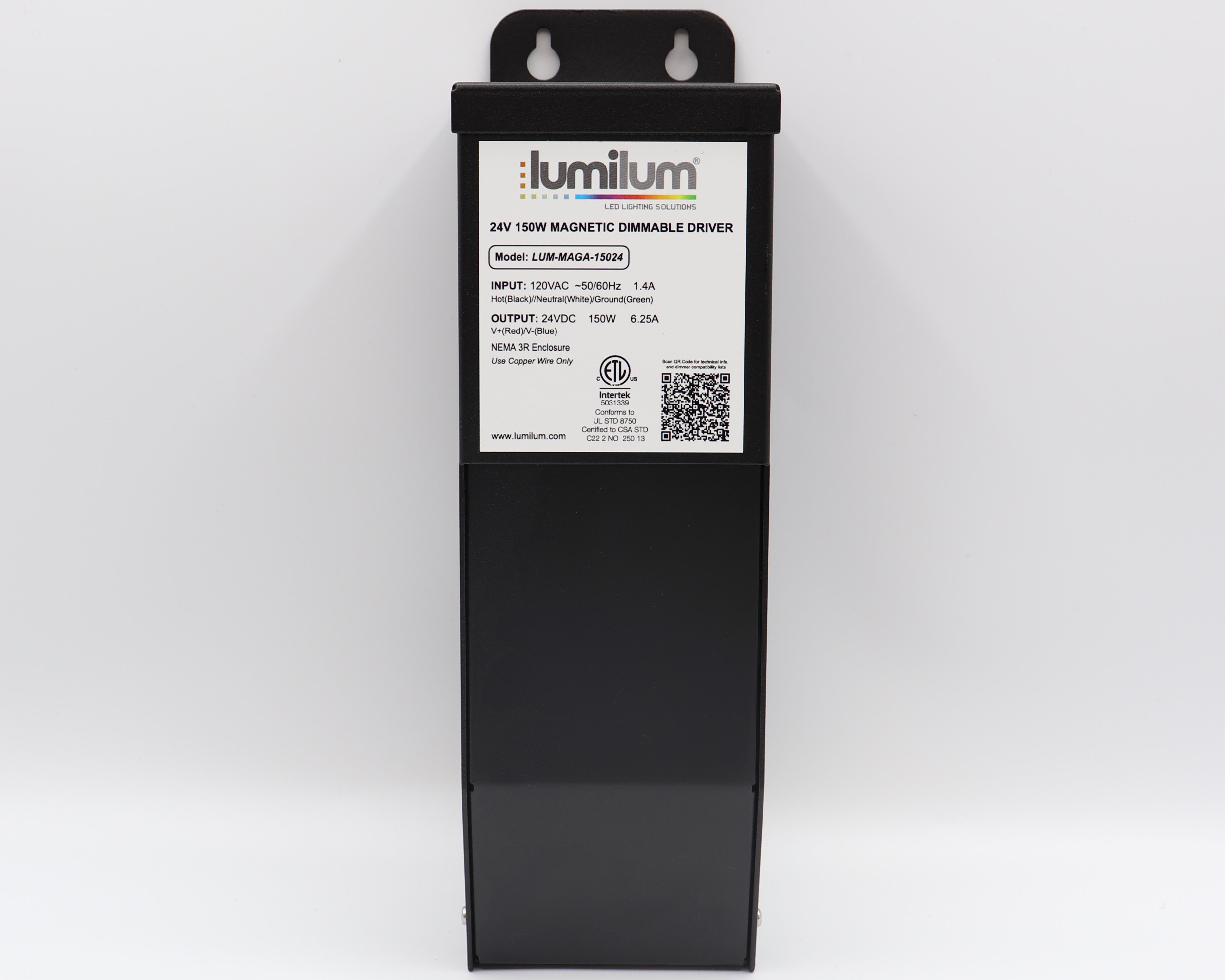

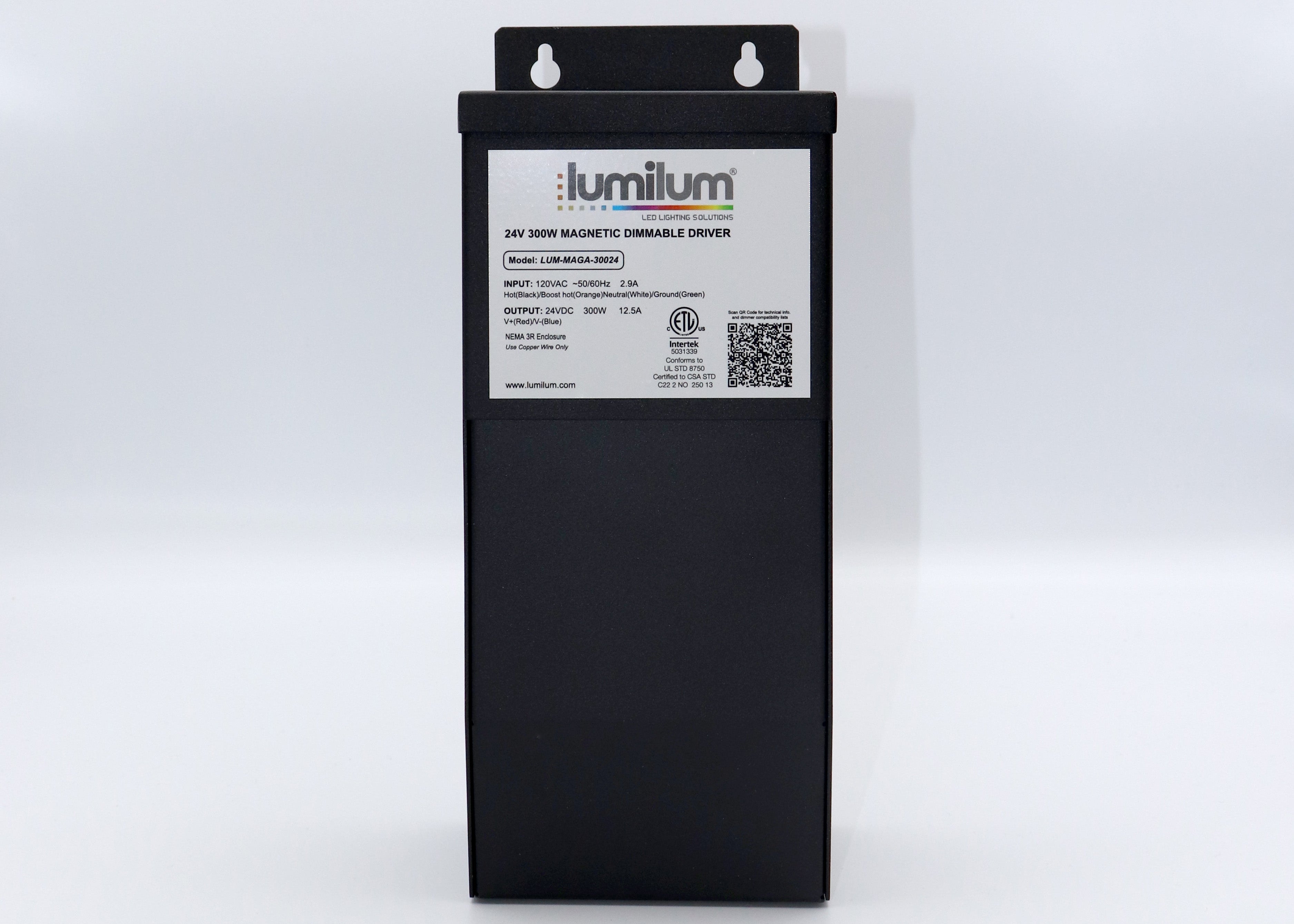

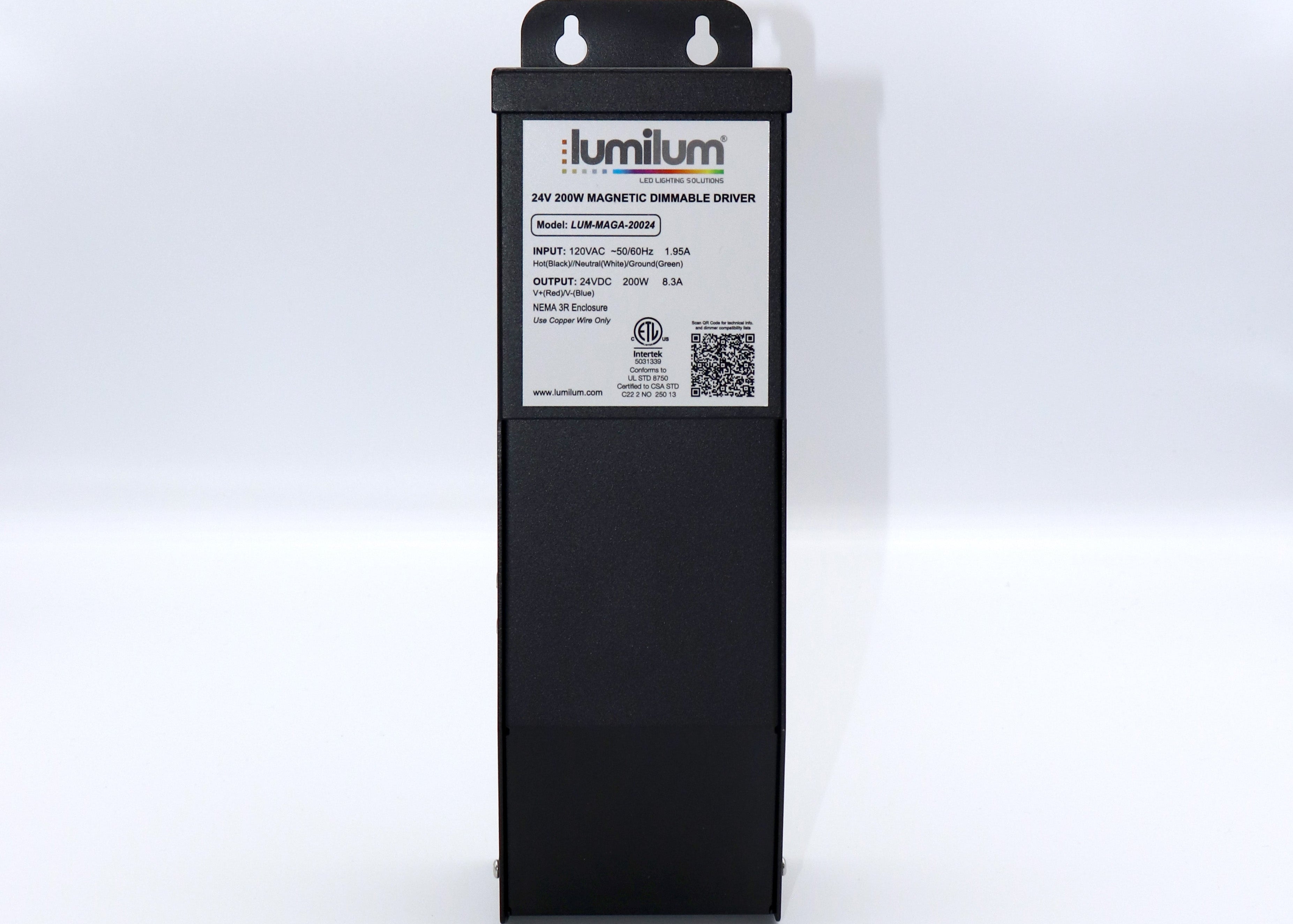

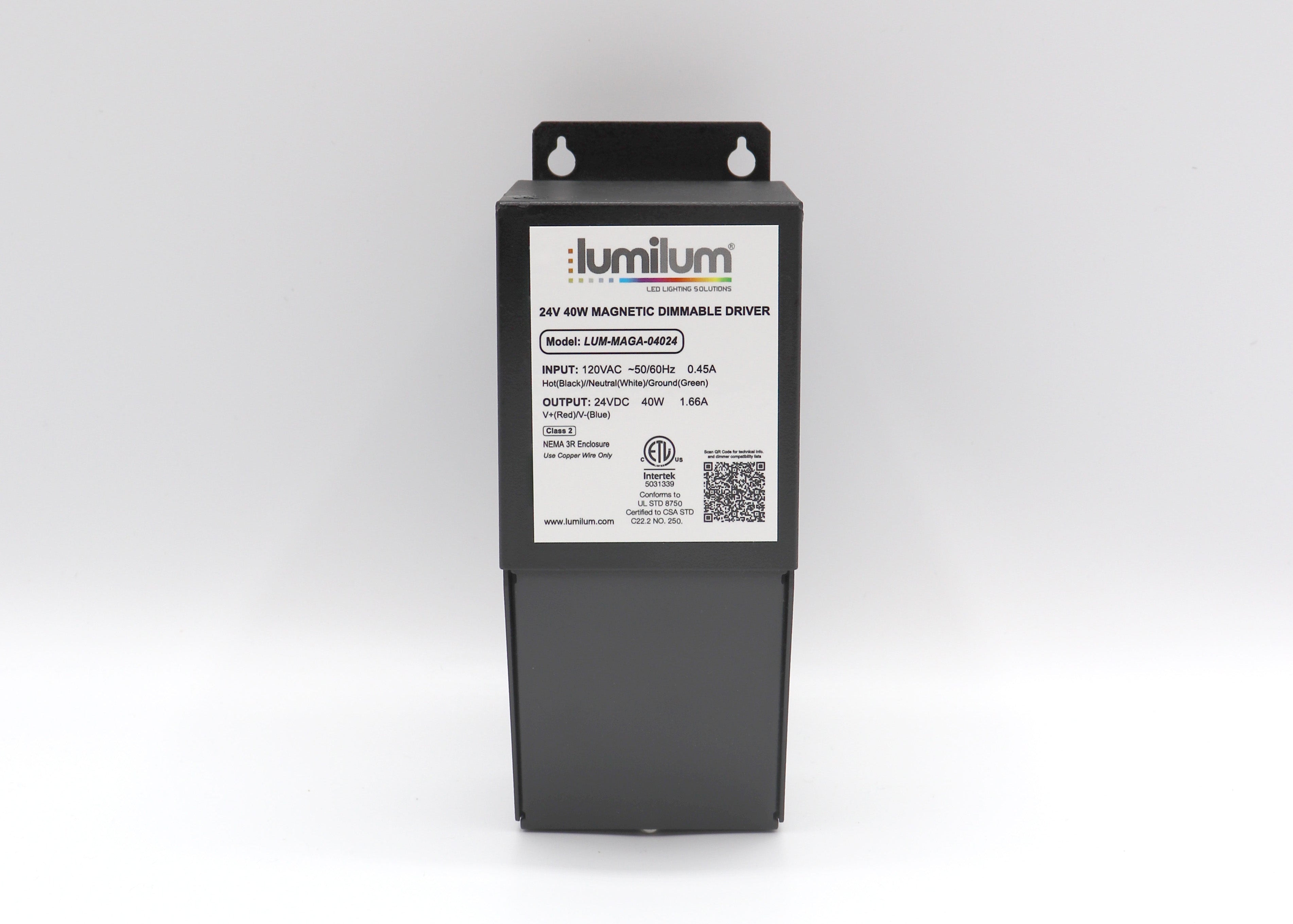

24V LED Magnetic Driver

Lumilum Brand - Dimmable - Integrated Junction Box

This low-voltage, dimmable LED magnetic driver is flicker-free and is suitable for any 24V LED strip light project. This 24V driver works best with our , , , , and .

Available in various wattages 40W - 300W, this magnetic LED driver can be operated with any magnetic low voltage (MLV) wall-mounted dimmer that is available online or at any hardware store ().

Driver Selection

Step 1: Determine Total Wattage

Calculate the total wattage of the LED strip lights you plan to use. This is done by multiplying the wattage per foot (or meter) of the strip by the total length you'll need.

For example, if your strip uses 5 watts per foot and you need 20 feet, the calculation is:

Total Wattage = 5 watts per foot × 20 feet = 100 watts

Step 2: Add a Safety Margin

To ensure reliability and prevent overload, it's wise to add a safety margin of 20% to your total wattage. This means you will need a transformer that can handle:

$\text{Required Transformer Capacity }=\text{Total Wattage }\times 1.2,\; so100\text{watts }\times 1.2=120\text{watts}$

Therefore, in this example, you should select a transformer with at least 120 watts capacity.

*Example: a 16.4ft strip is 50 watts x 1.2 = 60 watt driver is needed

Features

• 24V DC driver
• Integrated junction box
• IP20 rated for indoor use (or in exteriors with NEMA 3R Enclosure)
• , UL8750, C22.2 No.223

• Lower Power Consumption – 15% more efficient, due to the avoidance of unnecessary double conversion in the circuitry.
• No RFI Issues – Operates at a perfect 60Hz sinus wave, therefore they produce no radio frequency interference whatsoever.
