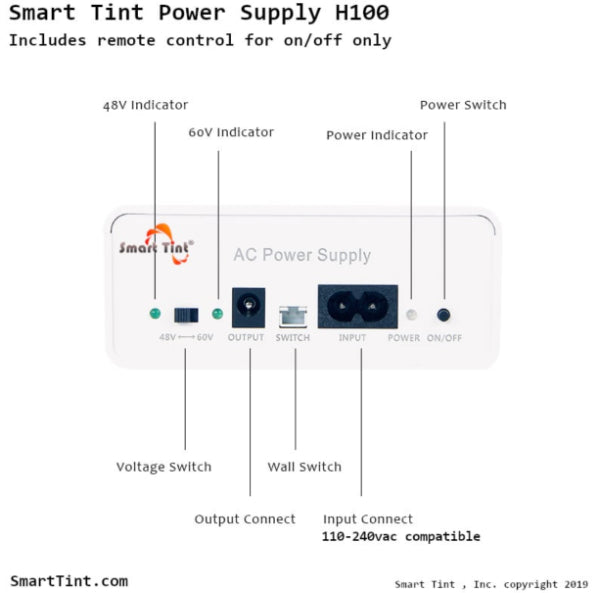

Smart Tint Power Supply H-100R with Remote Control or Wall Switch power control unit is extremely efficient and designed for long term permanent installation.
The H-100R is made of fine copper material, and has a very stable output. This 100watt unit controls up to 100sq feet or 10 square meters of Smart Tint's 6th Generation Smart Film material and is constructed of a high performance flame retardant epoxy resin casting. The operating temperature is very low and suitable for various environments.
Smart Tint's H-100R power control unit has a circuit board that utilizes a self recovery system designed to cut the power by itself when over loaded. This system will auto restart when over load or short is corrected. Includes RF remote and dry contact relay input compatible with 3rd party control systems such as Crestron, Lutron, Savant, DMX etc.
Specifications
- Rated Power: 100W
- Rated Ampere: 2A
- Input Voltage: AC 110-120 vac
- Output voltage: AC 48-60vac VAC
- Size: 46mm H (1.8") x 110mm W(4.3") x 179mm L(7.0")
