Add-On Amplifier OEM Integration Line Converter with DSP for Select 2011-2020 Hyundai and KIA Vehicles
Upgrade the sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness along with an amplifier bypass harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in Interface
While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning Control
There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
- Designed for non-amplified models

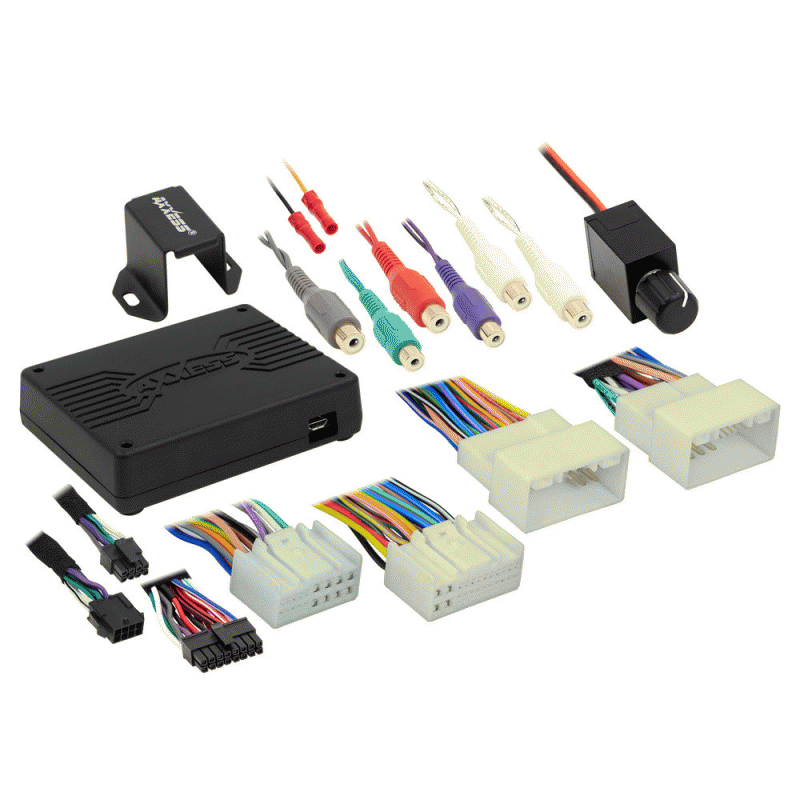

- Package includes the AXDSP-L and vehicle-specific T-harness
- 15-band graphic EQ or 5-band Parametric EQ
- Selectable high pass, low pass, or bandpass filters on each channel
- 4 inputs and 6 individually assignable outputs
- Independent equalization on each of the 6 outputs
- Selectable slope (12, 24, 36, or 48db per octave)
- Each channel can be delayed independently for up to 10 ms
- Easy behind the radio installation in most applications
- Can be used with OE and aftermarket radios
- Clipping detection and limiting circuits
- Internal header port for adding interface modules
- Bass knob included
- Retains OE voice prompts (Blue Link®/UVO)
- Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
- Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
- Read, write, and store configurations for future recall
- Password-protect feature is available in the mobile app
Applications
| HYUNDAI |
|
|
| Accent |
| 2012-2017 |
| Azera |
| 2012-2017 |
| Elantra |
| 2011-2016 |
| Genesis Coupe | Non-Amplified | 2014-2016 |
| Sonata | (11-13, Non-JBL) | 2011-2017 |
| Sonata |
| 2018-2020 |
| Tucson |
| 2011-2019 |
| Veloster |
| 2012-2017 |
| KIA |
|
|
| Cadenza |
| 2014-2016 |
| Forte | (2017-2018; Non-UVO) | 2014-2018 |
| Niro (Hybrid Electrical) | Navigation | 2017-2019 |
| Optima |
| 2011-2018 |
| Rio |
| 2012-2017 |
| Sedona |
| 2015-2016 |
| Sedona | Navigation | 2017-2020 |
| Sorento |
| 2014-2016 |
| Sorento | Navigation | 2017-2018 |
| Soul |
| 2012-2016 |
| Soul EV | Navigation | 2015-2019 |
| Sportage |
| 2011-2016 |
