Description

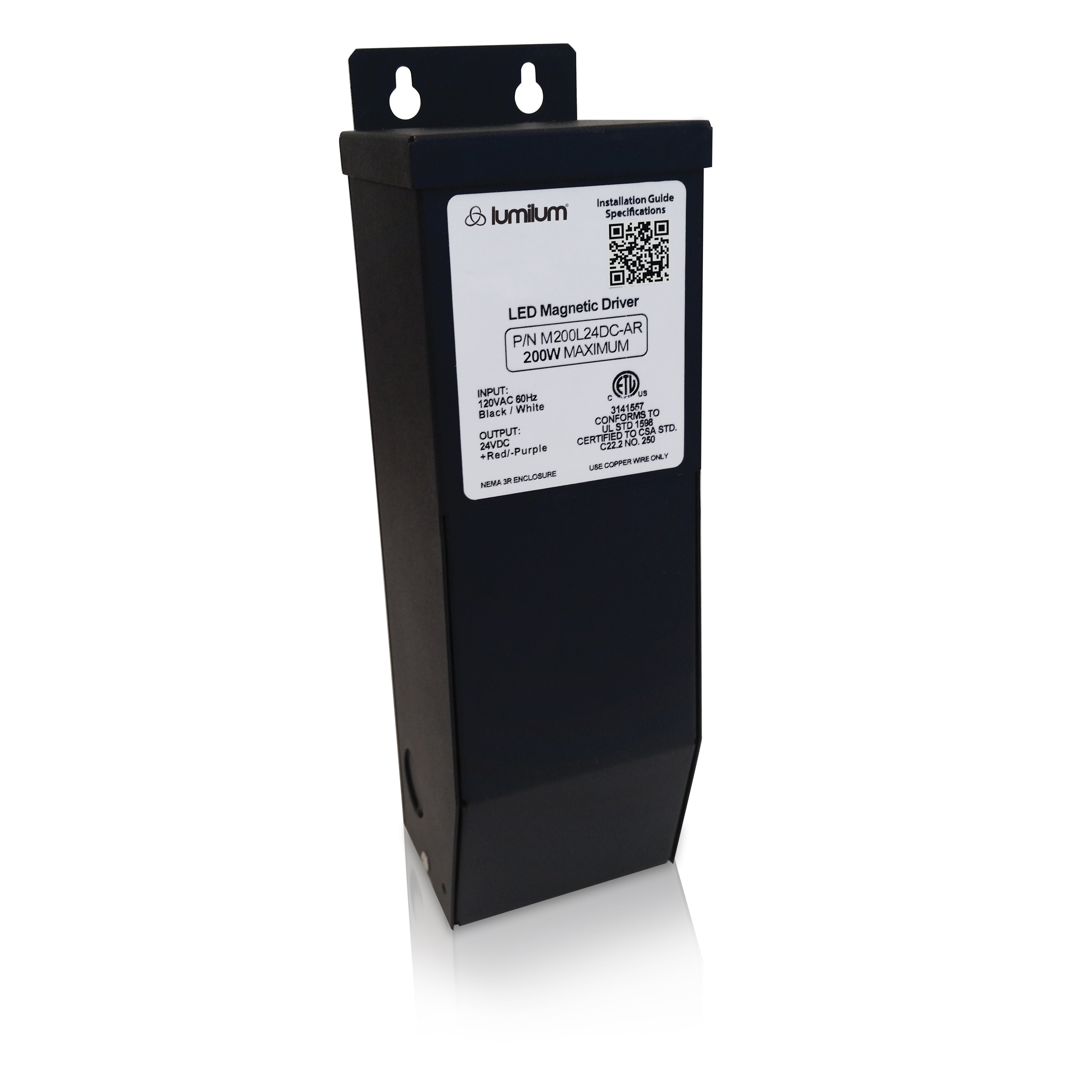

24V LED Light Transformer (Magnetic)
Low Voltage - Dimmable - Indoor/Outdoor Use
This low-voltage, dimmable series of LED transformers is flicker-free and are suitable for any 24V LED strip light project. This 24V driver works best with our ,, , , and .
Available in various wattages 40W - 300W, this LED transformer can be operated with any magnetic low voltage (MLV) wall-mounted dimmer that is available online or at any hardware store ().
Driver Selection
Step 1: Determine Total Wattage
Calculate the total wattage of the LED strip lights you plan to use. This is done by multiplying the wattage per foot (or meter) of the strip by the total length you'll need.
For example, if your strip uses 5 watts per foot and you need 20 feet, the calculation is:
Total Wattage = 5 watts per foot × 20 feet = 100 watts
Step 2: Add a Safety Margin
To ensure reliability and prevent overload, it's wise to add a safety margin of 20% to your total wattage. This means you will need a transformer that can handle:
Required Transformer Capacity = Total Wattage × 1.2, so 100 watts × 1.2 = 120 watts
Therefore, in this example, you should select a transformer with at least 120 watts capacity.
*Example: a 16.4ft strip is 50 watts x 1.2 = 60 watt driver is needed
Features
