MeanWell is the leading designer and manufacturer of LED Power Supplies for both indoor and outdoor LED lighting applications. As some of the most demanding lighting products in the world, they are used for: street, tunnel, architectural, commercial signage, and large display lighting.

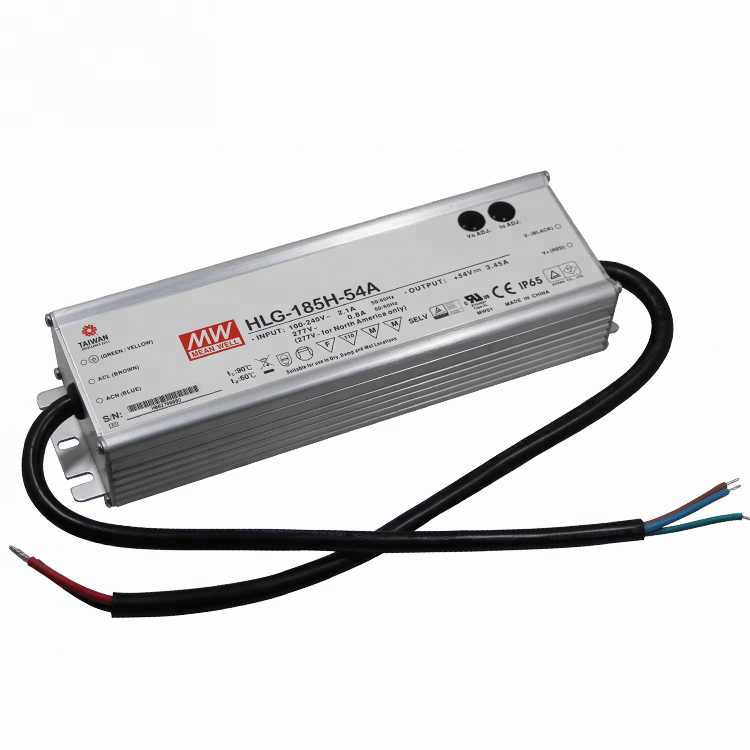

Lumilum recommends this 24V transformer for heavy-duty uses or when power needs to be placed outdoors, subject to the elements. These Mean Well drivers are waterproof rated IP65.
Use this Meanwell 24V transformer to power any Lumilum Low Voltage Strip Light.
This 24V driver is suitable for use with LED Strip Lights from our , , , and .
Driver Selection
Step 1: Determine Total Wattage
Calculate the total wattage of the LED strip lights you plan to use. This is done by multiplying the wattage per foot (or meter) of the strip by the total length you'll need.
For example, if your strip uses 5 watts per foot and you need 20 feet, the calculation is:
Total Wattage = 5 watts per foot × 20 feet = 100 watts
Step 2: Add a Safety Margin
To ensure reliability and prevent overload, it's wise to add a safety margin of 20% to your total wattage. This means you will need a transformer that can handle:
Required Transformer Capacity = Total Wattage × 1.2, so 100 watts × 1.2 = 120 watts
Therefore, in this example, you should select a transformer with at least 120 watts capacity.
*Example: a 16.4ft strip is 50 watts x 1.2 = 60 watt driver is needed
Features
- IP65 rated for indoor/outdoor use
- This unit does not support dimming
Applications
Cove Lighting | Under Cabinet Lighting | Stage Lighting | Stairs | Restaurants | Back-lit Signs | LED Kitchen Lighting | Bars & Liquor Displays | Window Trims | Furniture Illumination | Home Accent Lighting | Architectural Lighting | Hotels | Bedroom LED Lighting | Event Lighting | Hotels | Professional LED Lighting Design Projects | Residential Lighting Projects
