Add-On Amplifier OEM Integration Line Converter with DSP for Select 2002-2020 Mazda Vehicles
Upgrade your sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in Interface
While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning Control
There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

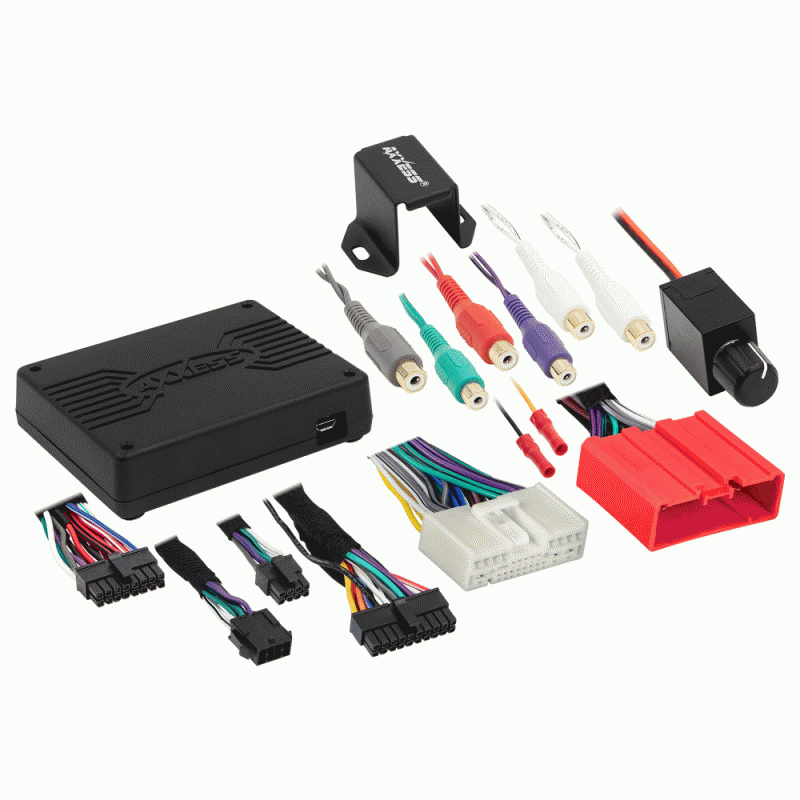

- Package includes the AXDSP-L and vehicle-specific T-harness
- 15-band graphic EQ or 5-band Parametric EQ
- Selectable high pass, low pass, or bandpass filters on each channel
- 4 inputs and 6 individually assignable outputs
- Independent equalization on each of the 6 outputs
- Selectable slope (12, 24, 36, or 48db per octave)
- Each channel can be delayed independently for up to 10 ms
- Easy behind the radio installation in most applications
- Can be used with OE and aftermarket radios
- Clipping detection and limiting circuits
- Internal header port for adding interface modules
- Bass knob included
- Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
- Designed for amplified and non-amplified models
- Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
- Read, write, and store configurations for future recall
- Password-protect feature is available in the mobile app
- Micro “B” USB updatable
- 1-year limited warranty
Applications
| MAZDA |
|
|
| CX-5 |
| 2013-2015 |
| CX-9 |
| 2008-2015 |
| Mazda 2 |
| 2011-2014 |
| Mazda 3 |
| 2004-2015 |
| Mazda 5 |
| 2006-2015 |
| Mazda 6 |
| 2008-2015 |
| Mazda 6 | Without Center Display | 2016-2017 |
| MX-5 Miata |
| 2002-2015 |
| MX-5 Miata | Without Center Display | 2016-2020 |
