Add-On Amplifier OEM Integration Interface for Select 2011-UP Non-Amplified Chrysler, Dodge, Fiat, Jeep and RAM Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
- Designed to provide (2) channels of low-level audio output from the factory system
- Allows for the installation of an amplifier for speakers or subwoofers
- Gain Controller included to adjust the overall output
- 12v-500mA remote wire activated with signal sense
- 55 watts per channel

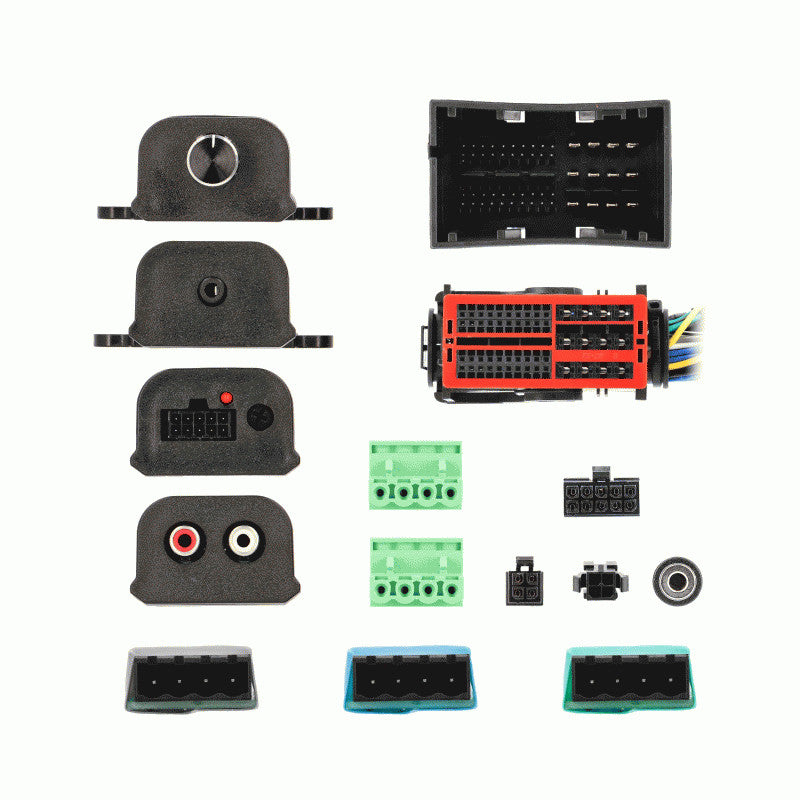

Contents
- AXLOC-CH5 Wiring Harness
- Gain Controller
- 12v-500mA Remote Wire
- Auxiliary Cable
Applications
| CHRYSLER |
|
|
| 200 | non-amplified | 2015-2017 |
| 300 | non-amplified | 2015-2023 |
| Pacifica | non-amplified | 2017-2020 |
| DODGE |
|
|
| Challenger | non-amplified | 2015-2023 |
| Charger | non-amplified | 2015-2023 |
| Dart | non-amplified | 2013-2016 |
| Durango | non-amplified | 2014-2020 |
| Durango | non-amplified | 2011-2013 |
| FIAT |
|
|
| 500 | non-amplified | 2016-2019 |
| 500L | non-amplified | 2014-2020 |
| 500x | non-amplified | 2016-2021 |
| JEEP |
|
|
| Cherokee | non-amplified | 2014-Up* |
| Compass | non-amplified | 2022-2023 |
| Compass | non-amplified | 2017-2021 |
| Gladiator | non-amplified | 2020-2023 |
| Grand Cherokee | non-amplified | 2022-2023 |
| Grand Cherokee | non-amplified | 2014-2017 |
| Renegade | non-amplified | 2015-2023 |
| Wrangler (JL) | non-amplified | 2018-2023 |
| Wrangler 4XE | non-amplified | 2021-2022 |
| RAM |
|
|
| Chasis Cab 2500-5500 | non-amplified | 2013-Up* |
| Promaster | non-amplified | 2022-2023 |
| Promaster | non-amplified | 2014-2021 |
| Promaster City | non-amplified | 2015-2021 |
| RAM Truck | non-amplified | 2013-2021 |
